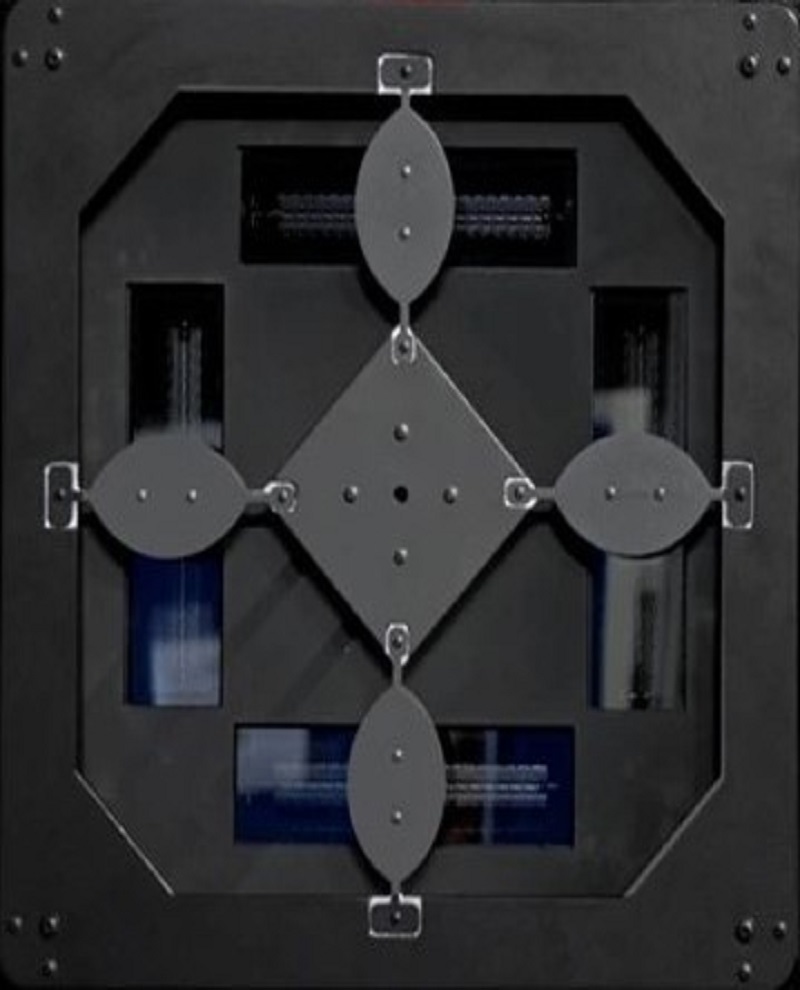

Sun Simulator (PASAN 3B)

Make/Model: PASAN, Class AAA, 3B Simulator
Product Overview

• High-precision solar simulator providing stable irradiance for PV module performance testing under standard test conditions (STC). Certified to Class AAA (IEC 60904-9).

Included Equipment

• Xenon flash lamp system
• Light uniformity module
• Irradiance and spectrum monitoring sensors
• Calibration kit (reference cell + pyranometer)
• Software for IV curve capture and reporting

Technical Specifications

• Irradiance Uniformity: <±2%
• Spectrum Match: Class A (IEC 60904-9)
• Pulse Duration: >10 ms
• Module Size: Full-size up to 2.4 × 1.3 m
• Standards: IEC 60904-1, IEC 61215, IEC 61730

Applications

• Factory acceptance testing of PV modules
• Calibration of IV curve testers
• Certification and R&D evaluation
