Advanced GEO Earth Ground Tester Kit

Make/Model: Fluke 1625-2


Product Overview

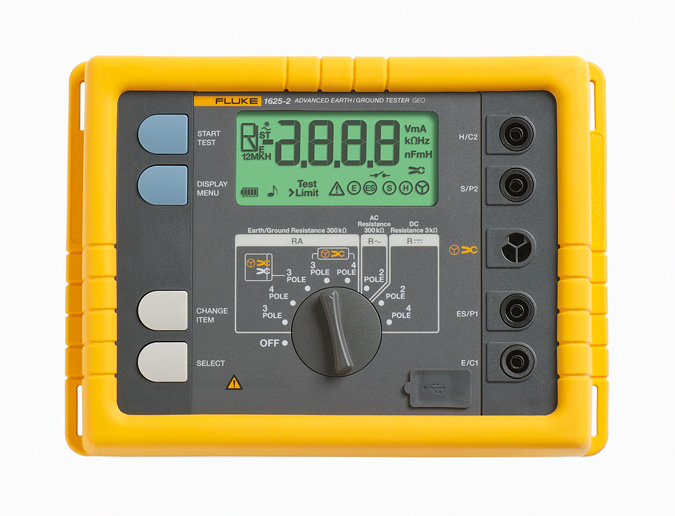

The Fluke 1625-2 is a comprehensive earth ground tester capable of performing 3- and 4-pole ground resistance tests, selective testing, and leakage current measurements. Ideal for verifying grounding systems in substations, PV plants, and industrial sites.

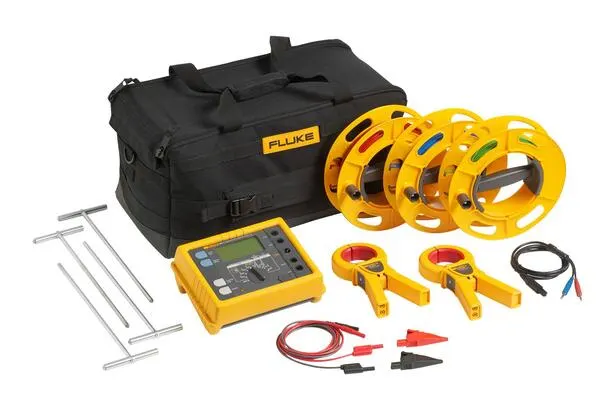

Included Equipment

• Fluke 1625-2 tester
• 4 test leads, 4 auxiliary earth stakes
• Current clamp and voltage clamp
• Rechargeable batteries and charger
• Carrying case
• Calibration certificate

Technical Specifications

• Test Methods: 3- and 4-pole resistance, selective testing, stakeless testing
• Resistance Range: 0.020 Ω to 19.99 kΩ
• Accuracy: ±(2% + 0.05 Ω)
• Leakage Current: 0.2 mA to 20 A
• Standards: IEC 61557-5

Applications

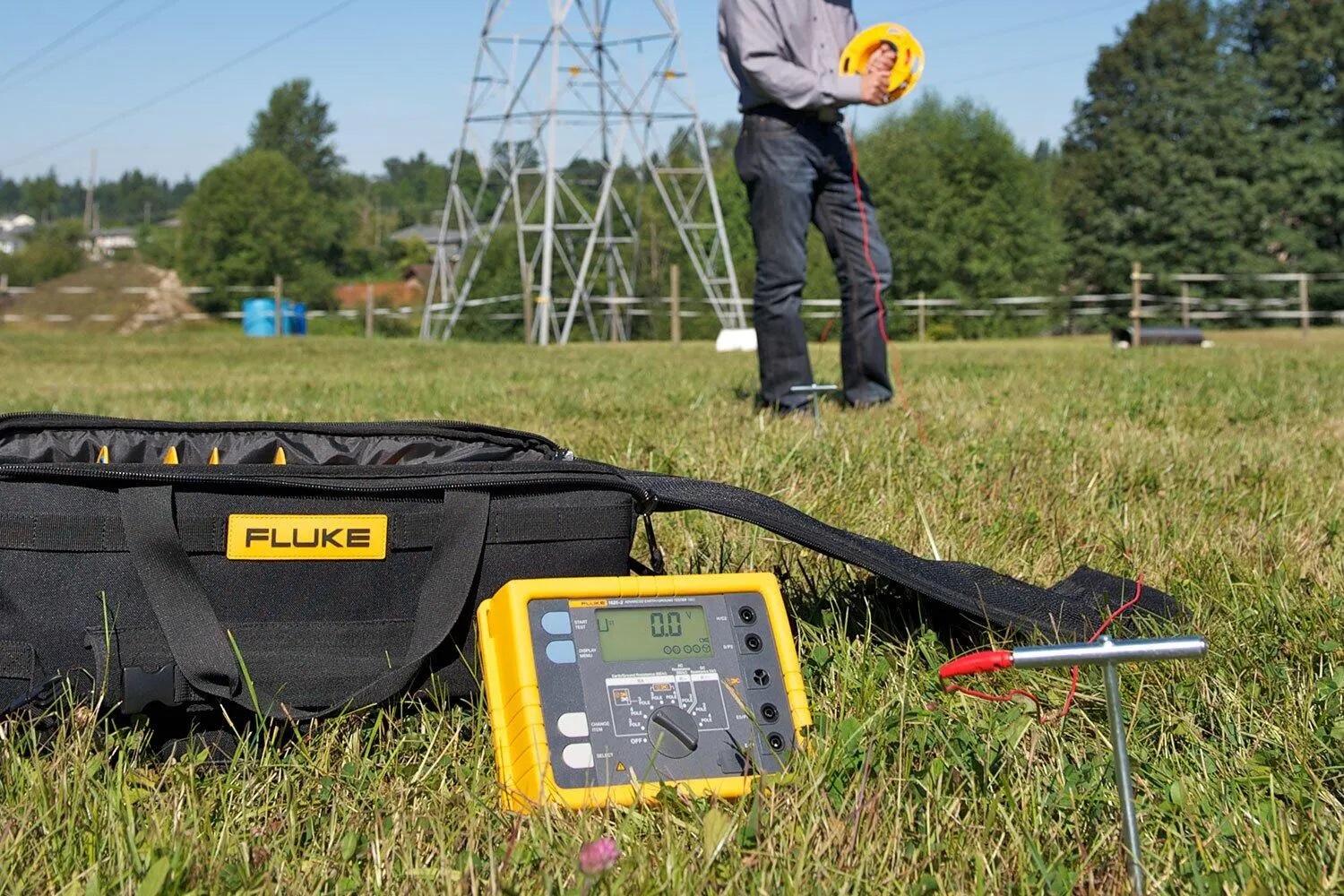

• Ground resistance testing in substations and PV plants
• Earth loop impedance checks
• Verification of lightning protection systems.
