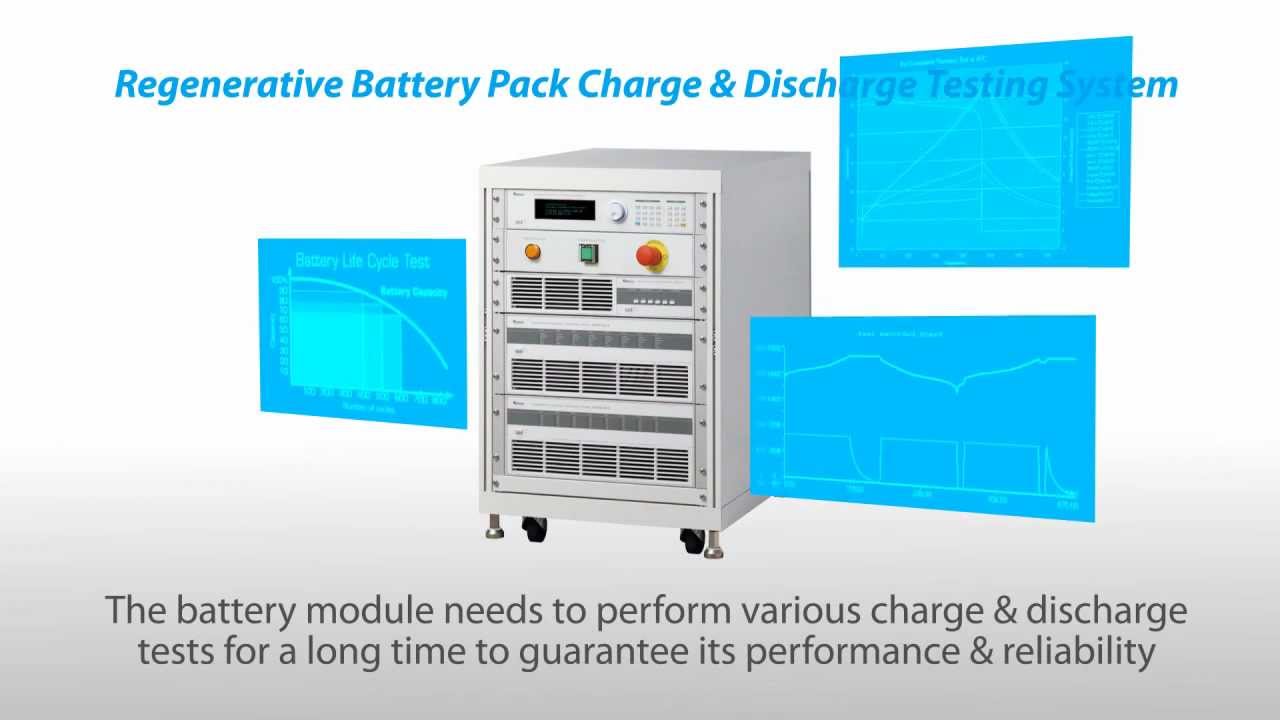

Battery Charge/Discharge Test System (17020 Series)

Make/Model: Chroma 17020


Product Overview
The Chroma 17020 is a high-precision battery test system designed for safety, performance, and lifecycle testing of rechargeable batteries, modules, and packs. With built-in redundancy and multiple safety protections, it is widely used in R&D labs, production lines, and certification facilities.


Included Equipment

• Modular test racks with multiple charge/discharge channels
• Integrated power modules with independent control
• Industrial PC with Chroma Battery Pro software
• Safety interlocks, fuses, and emergency shutoff
• Cabling for battery packs/modules
• Data acquisition and monitoring hardware

Technical Specifications

• Voltage Range: 0–60 V / 0–100 V per channel (model dependent)
• Current Range: up to 600 A per channel (parallelable for higher currents)
• Power per Rack: Configurable (50 kW – 1 MW)
• Current Accuracy: ±0.05% FS
• Voltage Accuracy: ±0.02% FS
• Sampling Rate: up to 10 ms
• Safety: Over-voltage, over-current, reverse polarity, over-temperature protection
• Control Modes: CC, CV, CP, CR, and dynamic drive profiles (e.g., EV drive cycles)
• Standards: IEC, IEEE, UL, GB/T compliance testing

Applications

• R&D validation of Li-ion, NiMH, and lead-acid cells/modules
• Cycle life, capacity, and efficiency testing
• EV battery pack simulation and drive-cycle testing
• Safety compliance and thermal runaway detection
• Production line QA and certification
